NavigationBar

Material 3 Navigation Bar component.

Navigation bars offer a persistent and convenient way to switch between primary destinations in an app.

ft.NavigationBar(
    destinations=[
        ft.NavigationBarDestination(icon=ft.Icons.CIRCLE, label="Item 1"),
        ft.NavigationBarDestination(icon=ft.Icons.SQUARE, label="Item 2"),
        ft.NavigationBarDestination(icon=ft.Icons.HEXAGON, label="Item 3"),
    ],
)

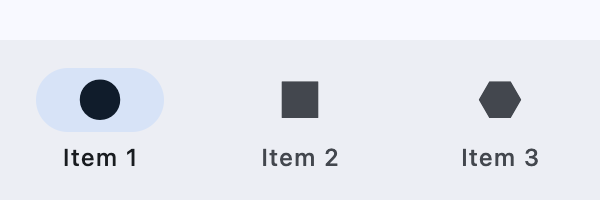

Simple navigation bar

Inherits: LayoutControl, AdaptiveControl

Properties

• animation_duration - The transition time for each destination as it goes between selected and unselected.
• bgcolor - The color of the navigation bar itself.
• border - TBD
• destinations - Defines the appearance of the button items that are arrayed within the navigation bar.
• elevation - The elevation of the navigation bar itself.
• indicator_color - The color of the selected destination indicator.
• indicator_shape - The shape of the selected destination indicator.
• label_behavior - Defines how the destinations' labels will be laid out and when they'll be displayed.
• label_padding - The padding around the flet.NavigationBarDestination.label.
• overlay_color - The highlight color of the NavigationBarDestination in various ControlState states.
• selected_index - The index into destinations for the current selected NavigationBarDestination or None if no destination is selected.
• shadow_color - The color used for the drop shadow to indicate elevation.

Events

• on_change - Called when selected destination changed.

Examples

Live example

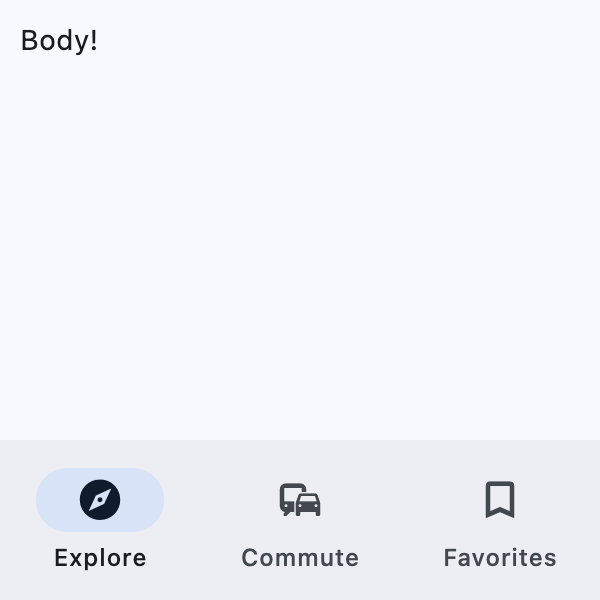

Basic Example

import flet as ft


def main(page: ft.Page):
    page.title = "NavigationBar Example"

    page.navigation_bar = ft.NavigationBar(
        destinations=[
            ft.NavigationBarDestination(icon=ft.Icons.EXPLORE, label="Explore"),
            ft.NavigationBarDestination(icon=ft.Icons.COMMUTE, label="Commute"),
            ft.NavigationBarDestination(
                icon=ft.Icons.BOOKMARK_BORDER,
                selected_icon=ft.Icons.BOOKMARK,
                label="Favorites",
            ),
        ]
    )

    page.add(
        ft.SafeArea(
            content=ft.Text("Body!"),
        )
    )


if __name__ == "__main__":
    ft.run(main)

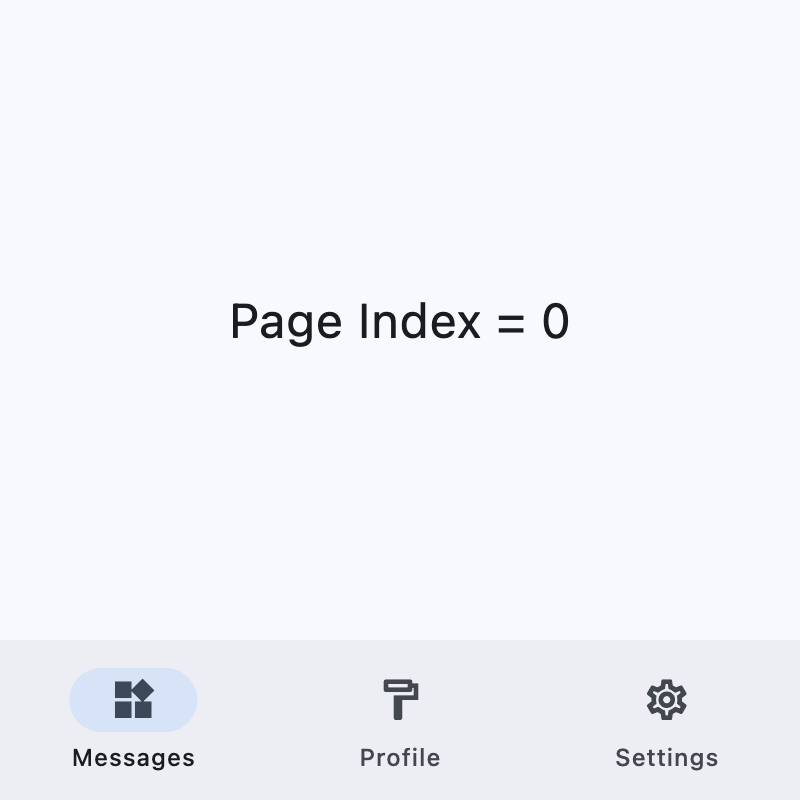

Adaptive navigation

This example switches between a NavigationBar on narrow layouts and a NavigationRail with an end NavigationDrawer on wider layouts.

import flet as ft

DESTINATIONS = [
    ("Messages", ft.Icons.WIDGETS_OUTLINED, ft.Icons.WIDGETS),
    ("Profile", ft.Icons.FORMAT_PAINT_OUTLINED, ft.Icons.FORMAT_PAINT),
    ("Settings", ft.Icons.SETTINGS_OUTLINED, ft.Icons.SETTINGS),
]


def main(page: ft.Page):
    page.theme_mode = ft.ThemeMode.LIGHT
    page.padding = 0

    screen_index = 0

    def build_page_index_text() -> ft.Text:
        return ft.Text(f"Page Index = {screen_index}", size=24)

    def set_screen(index: int):
        nonlocal screen_index
        screen_index = index
        render()

    def build_navigation_bar() -> ft.NavigationBar:
        def handle_nav_bar_change(e: ft.Event[ft.NavigationBar]):
            set_screen(e.control.selected_index)

        return ft.NavigationBar(
            selected_index=screen_index,
            on_change=handle_nav_bar_change,
            destinations=[
                ft.NavigationBarDestination(
                    label=label,
                    icon=icon,
                    selected_icon=selected_icon,
                )
                for label, icon, selected_icon in DESTINATIONS
            ],
        )

    def build_navigation_rail() -> ft.NavigationRail:
        def handle_nav_rail_change(e: ft.Event[ft.NavigationRail]):
            if e.control.selected_index is not None:
                set_screen(e.control.selected_index)

        return ft.NavigationRail(
            min_width=50,
            selected_index=screen_index,
            use_indicator=True,
            on_change=handle_nav_rail_change,
            destinations=[
                ft.NavigationRailDestination(
                    label=label,
                    icon=icon,
                    selected_icon=selected_icon,
                )
                for label, icon, selected_icon in DESTINATIONS
            ],
        )

    def build_end_drawer() -> ft.NavigationDrawer:
        async def handle_drawer_change(e: ft.Event[ft.NavigationDrawer]):
            set_screen(e.control.selected_index)
            await page.close_end_drawer()

        return ft.NavigationDrawer(
            selected_index=screen_index,
            on_change=handle_drawer_change,
            controls=[
                ft.Container(
                    padding=ft.Padding.only(left=28, top=16, right=16, bottom=10),
                    content=ft.Text(
                        "Header", theme_style=ft.TextThemeStyle.TITLE_SMALL
                    ),
                ),
                *[
                    ft.NavigationDrawerDestination(
                        label=label,
                        icon=icon,
                        selected_icon=selected_icon,
                    )
                    for label, icon, selected_icon in DESTINATIONS
                ],
            ],
        )

    def build_bottom_bar_layout() -> ft.SafeArea:
        return ft.SafeArea(
            expand=True,
            content=ft.Container(
                expand=True,
                alignment=ft.Alignment.CENTER,
                content=build_page_index_text(),
            ),
        )

    def build_drawer_layout() -> ft.SafeArea:
        async def open_drawer(e: ft.Event[ft.Button]):
            await page.show_end_drawer()

        return ft.SafeArea(
            expand=True,
            avoid_intrusions_top=False,
            avoid_intrusions_bottom=False,
            content=ft.Row(
                expand=True,
                controls=[
                    ft.Container(
                        padding=ft.Padding.symmetric(horizontal=5),
                        content=build_navigation_rail(),
                    ),
                    ft.VerticalDivider(thickness=1, width=1),
                    ft.Column(
                        expand=True,
                        alignment=ft.MainAxisAlignment.SPACE_EVENLY,
                        horizontal_alignment=ft.CrossAxisAlignment.CENTER,
                        controls=[
                            build_page_index_text(),
                            ft.Button("Open Drawer", on_click=open_drawer),
                        ],
                    ),
                ],
            ),
        )

    def render():
        page.clean()
        if (page.width or page.window.width) >= 450:  # wide layout
            page.navigation_bar = None
            page.end_drawer = build_end_drawer()
            page.add(build_drawer_layout())
        else:  # narrow layout
            page.end_drawer = None
            page.navigation_bar = build_navigation_bar()
            page.add(build_bottom_bar_layout())
        page.update()

    page.on_resize = lambda e: render()
    render()


if __name__ == "__main__":
    ft.run(main)

Properties

buildanimation_durationclass-attributeinstance-attribute

animation_duration: Optional[DurationValue] = None

The transition time for each destination as it goes between selected and unselected.

buildbgcolorclass-attributeinstance-attribute

bgcolor: Optional[ColorValue] = None

The color of the navigation bar itself.

buildborderclass-attributeinstance-attribute

border: Optional[Border] = None

TBD

builddestinationsclass-attributeinstance-attribute

destinations: Annotated[list[NavigationBarDestination], V.visible_controls(min_count=2)] = field(default_factory=list)

Defines the appearance of the button items that are arrayed within the navigation bar.

Raises:

• ValueError - If it does not contain at least two visible destinations.

buildelevationclass-attributeinstance-attribute

elevation: Optional[Number] = None

The elevation of the navigation bar itself.

buildindicator_colorclass-attributeinstance-attribute

indicator_color: Optional[ColorValue] = None

The color of the selected destination indicator.

buildindicator_shapeclass-attributeinstance-attribute

indicator_shape: Optional[OutlinedBorder] = None

The shape of the selected destination indicator.

buildlabel_behaviorclass-attributeinstance-attribute

label_behavior: Optional[NavigationBarLabelBehavior] = None

Defines how the destinations' labels will be laid out and when they'll be displayed.

Can be used to show all labels, show only the selected label, or hide all labels.

Defaults to NavigationBarLabelBehavior.ALWAYS_SHOW.

buildlabel_paddingclass-attributeinstance-attribute

label_padding: Optional[PaddingValue] = None

The padding around the flet.NavigationBarDestination.label.

buildoverlay_colorclass-attributeinstance-attribute

overlay_color: Optional[ControlStateValue[ColorValue]] = None

The highlight color of the NavigationBarDestination in various ControlState states.

The following ControlState values are supported: PRESSED, HOVERED and FOCUSED.

buildselected_indexclass-attributeinstance-attribute

selected_index: int = 0

The index into destinations for the current selected NavigationBarDestination or None if no destination is selected.

buildshadow_colorclass-attributeinstance-attribute

shadow_color: Optional[ColorValue] = None

The color used for the drop shadow to indicate elevation.

Events

bolton_changeclass-attributeinstance-attribute

on_change: Optional[ControlEventHandler[NavigationBar]] = None

Called when selected destination changed.
